精品电蒸汽加热热水柜

简要描述:精品电蒸汽加热热水柜适用于一切具有蒸汽源或AC、380V、50Hz或AC、440V、60Hz电源的各类船舶上生产热水,经蒸汽或电加热后的水供船员生活之用。

  • 产品型号:ZDR
  • 厂商性质:生产厂家
  • 更新时间:2024-02-17
  • 访  问  量:1368

详细介绍

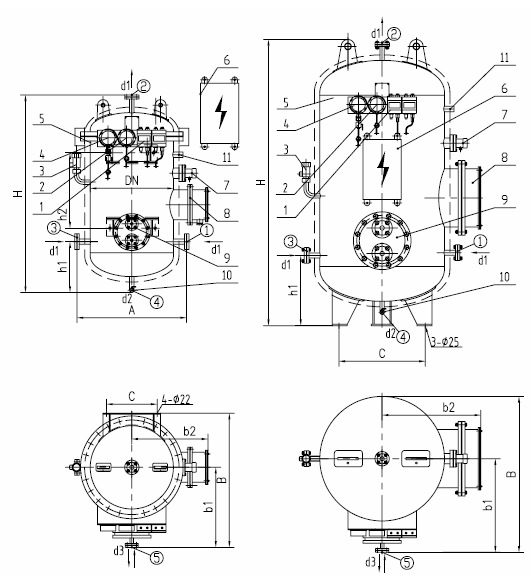

2、外形、安装及接口尺寸见下图和下表

Outline, mounting and connected dimension see the above drawing and the following table

1. .温度控制器Temperature Controller       2.压力表Pressure Gauge

3.安全阀Safety Valve   4.温度表Thermometer   5.本体Main Body

6.电控箱Electric Control Box       7.液位继电器Liquid Level Relay

8.电加热器Electric Heater   9.蒸汽加热器Steam Heater   10.放泄阀Discharge Valve

11.温度调节阀Temperature Controller

冷水进口Cool Water Inlet      热水出口Hot Water Outlet

回水进口Returning Water Inlet  泄水口Discharge

蒸汽进出口Steam Inlet/Outlet

注:0.12m3;0.2 m3;0.3 m3电控箱安装于柜本体附近的舱壁上。

Note:0.12m3;0.2 m3;0.3 m3。The electric control box is installed on the bulkhead near the main body。

型号Type

ZDR-

0.12

0.2

0.3

0.5

1.0

1.5

容积Capacity(m3)

0.12

0.2

0.3

0.5

1.0

1.5

工作压力Working Pressure(MPa)

0.4

设计压力Design Pressure(MPa)

0.45

蒸汽压力Steam Pressure(MPa)

0.3

进水温度Water Inlet Temp.(℃)

15

出水温度Water Outlet Temp.(℃)

65

蒸汽消耗量Steam consumption(kg/h)

27.5

45

75

120

325

325

蒸汽加热水量SteamHot-water capacity(kg/h)

275

450

750

1200

3250

3259

蒸汽加热面积SteamHot-water area(m2)

0.24

0.38

0.6

1.0

2.6

3.5

电加热水量Electric heating water(kg/h)

90

140

180

280

360

540

电加热功率Electric Heating power(kw)

6

9

12

18

24

36

重量Weight(kg)

205

225

275

340

400

760

DN

400

500

600

700

900

1000

A

608

708

808

908

1108

1208

B

807

858

910

912

1139

1243

H

1245

1367

1443

1773

2090

2527

d1

DN25

DN32

DN40

DN50

d2

3/4〞

1〞

d3

DN20

DN32

b1

512

513

585

557

684

737

b2

456

506

556

620

720

771

h1

271

299

371

470

515

600

h2

470

580

575

/

/

/

C

320

330

370

490

630

700
